R3-14A2 Screw Cap Panel Mount Fuse Holder For 6x30mm Fuses 30A 250V AC

Product Categories

Dongguan Tianrui Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

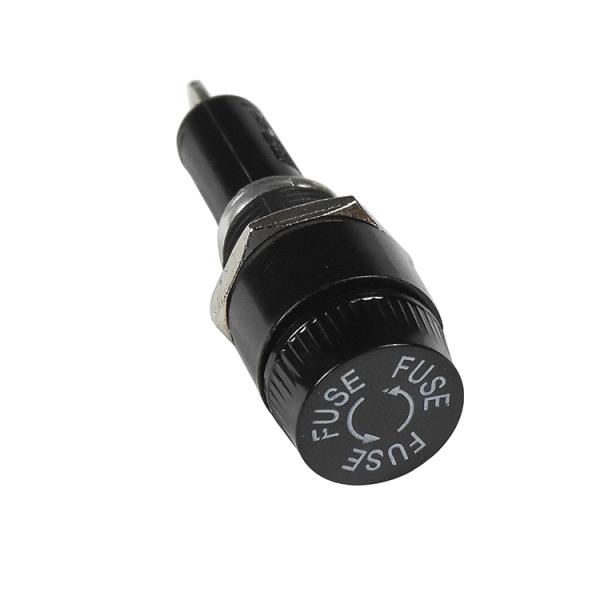

R3-14A2 Screw Cap Panel Mount Fuse Holder For 6x30mm Fuses 30A 250V AC

Name: R314A2 Screw Cap Panel Mount Fuse Holder For 6x30mm Fuses 30A 250V AC
Brand: Tian Rui
Price: 1 USD

Quality R3-14A2 Screw Cap Panel Mount Fuse Holder For 6x30mm Fuses 30A 250V AC for sale

Brand Name : Tian Rui

Model Number : R3-14A2

Certification : ROHS

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1000PCS/Bag

Rated Current : 30A

Rated Voltage : 250V

Fuse Size : 6x30mm 6.35x31.8mm

Material : Bakelite

Terminal : Nickel plated copper

Mounting : Mounted by nut

Application : Healthcare, smart home

D.S. : AC 5000V Min

Contact Resistance : ≤ 20MΩ

Insulation Resistance : ≥500MΩ

Contact Now

R3-14A2 Screw Cap Panel Mount Fuse Holder For 6x30mm Fuses 30A 250V AC

Paremeters of R3-14A2 6x30mm Panel Mount Fuse Holder

R3-14A2 Panel Mount Fuse Holder

30A 250V

For 6x30mm Tube Fuse

ROHS UL Certification

Material
Frame and cap	phenolic(UL flame: 94V-1)
Terminal	nickel plated copper
Mounted by nut

Product Name	Panel Mount Fuse Holder
Model Number	R3-14A2
Fuse Size	For 3AG 6x30mm 6.35x31.8mm Fuse
Mounting Way	Screw Mount
Cap	Slotted Driver Type Screw Cap
Certificate	ROHS UL
Opening	15mm
Operating Temperature	-10°C~+70°C
D.S. Strength	AC 5000V Min
Relative Humidity	95%, 40°C
Contact Resistance	≤ 20MΩ
Insulation Resistance	≥500MΩ
Withstand Voltage	3000V(50HZ)/min

Features

●Frame&Cap: Phenolic

●Mounted by nut.

●Metal or plastic nut is optional.

Application

high quality fuse holder and fuse can protects a circuit from overloading in extreme operating conditions or in the event of a short circuit, keep your car and electric device in safe condition.

R3-14A2 Screw Cap Panel Mount Fuse Holder For 6x30mm Fuses 30A 250V AC
